IRRIWORLD – Irrigation – Automation – Tap Timer – 1Zone - Battery operated - MI -106T

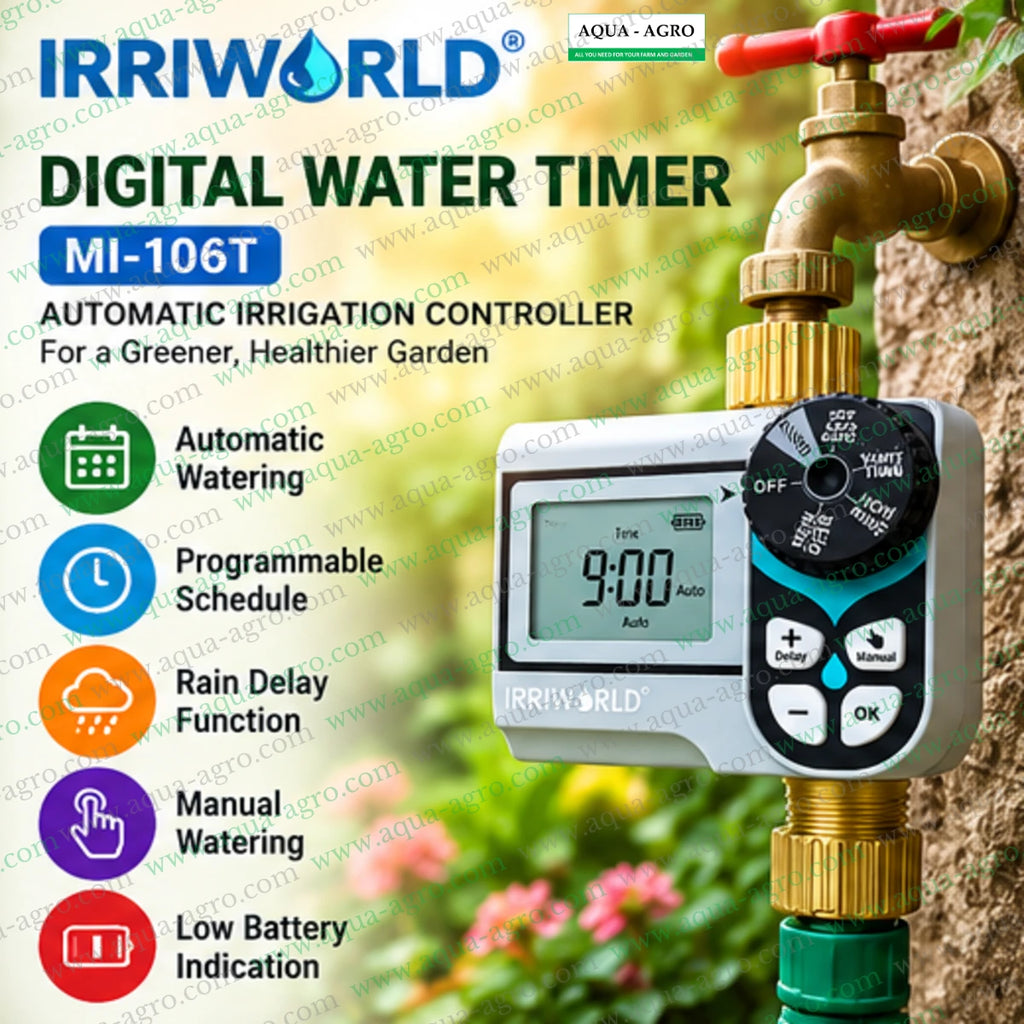

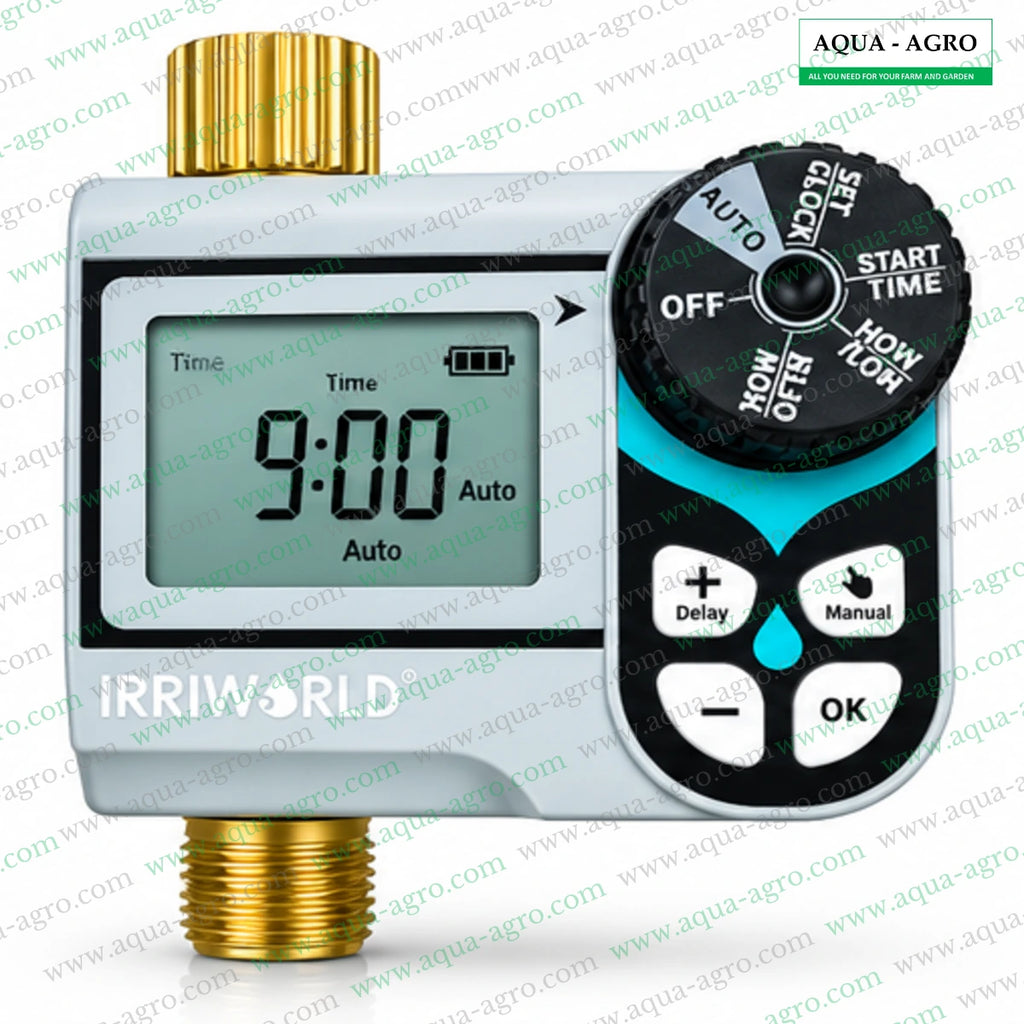

IRRIWORLD MI-106T Digital Ball Valve Water Timer – Automatic Garden Irrigation Controller

Make garden watering convenient, efficient and automated with the IRRIWORLD MI-106T Digital Water Timer, a programmable battery-operated irrigation controller designed for gardens, lawns, farms, greenhouses and drip irrigation systems.

This 3/4 Inch Automatic Watering Timer features an LCD display, rotary function selector, digital programming buttons and integrated ball valve mechanism to control water flow according to a preset watering schedule.

With automatic watering, manual operation, rain delay and customizable irrigation frequency, the IRRIWORLD MI-106T helps maintain consistent watering schedules while reducing the need for daily manual intervention.

Key Features & Benefits

• Automatic Watering Control: Program the irrigation timer to automatically turn water flow on and off according to your selected watering schedule.
• Digital LCD Display: Easy-to-read display for setting watering time, duration and irrigation programs.
• Programmable Watering Frequency: Set irrigation intervals from every 1–12 hours or every 1–7 days.
• Adjustable Watering Duration: Select watering durations from 1 minute up to 240 minutes per cycle.
• Rain Delay Function: Temporarily postpone scheduled watering during rainy conditions to avoid unnecessary irrigation.
• Manual Watering Mode: Operate the water supply manually without interrupting saved irrigation programming.
• Ball Valve Water Control: Integrated motorized ball valve mechanism for automatic water flow control.
• Battery Operated: Powered by 2 AA 1.5V alkaline batteries, eliminating the need for external electrical wiring.
• Low Battery Indication: Displays a low-voltage warning to help users identify when batteries need replacement.
• Next Irrigation Reminder: Provides information about the upcoming scheduled watering time.
• IP55 Protection Rating: Designed with an IP55-rated enclosure for protection against dust and water jets under specified test conditions.
• Easy Program Shutdown: Dedicated OFF mode allows users to disable scheduled irrigation programs.
• 3/4 Inch Water Connections: Designed for compatible threaded water taps and garden hose connections.

Applications

1. Home Garden Irrigation

Automatically water flowers, shrubs and ornamental plants using a programmable garden water timer.

2. Lawn Watering Systems

Schedule watering cycles for compatible lawn sprinklers and garden irrigation systems.

3. Drip Irrigation Systems

Automate watering schedules for drip irrigation pipes, drippers and micro irrigation systems connected to a suitable water supply.

4. Greenhouse Irrigation

Maintain regular watering schedules for greenhouse plants, seedlings and nursery cultivation.

5. Terrace and Balcony Gardens

Control watering for potted plants, grow bags and container gardening installations.

6. Kitchen Gardens

Schedule watering for vegetables, herbs and small home cultivation areas.

7. Farm Irrigation

Suitable for compatible small-scale agricultural watering installations within the timer's pressure and flow specifications.

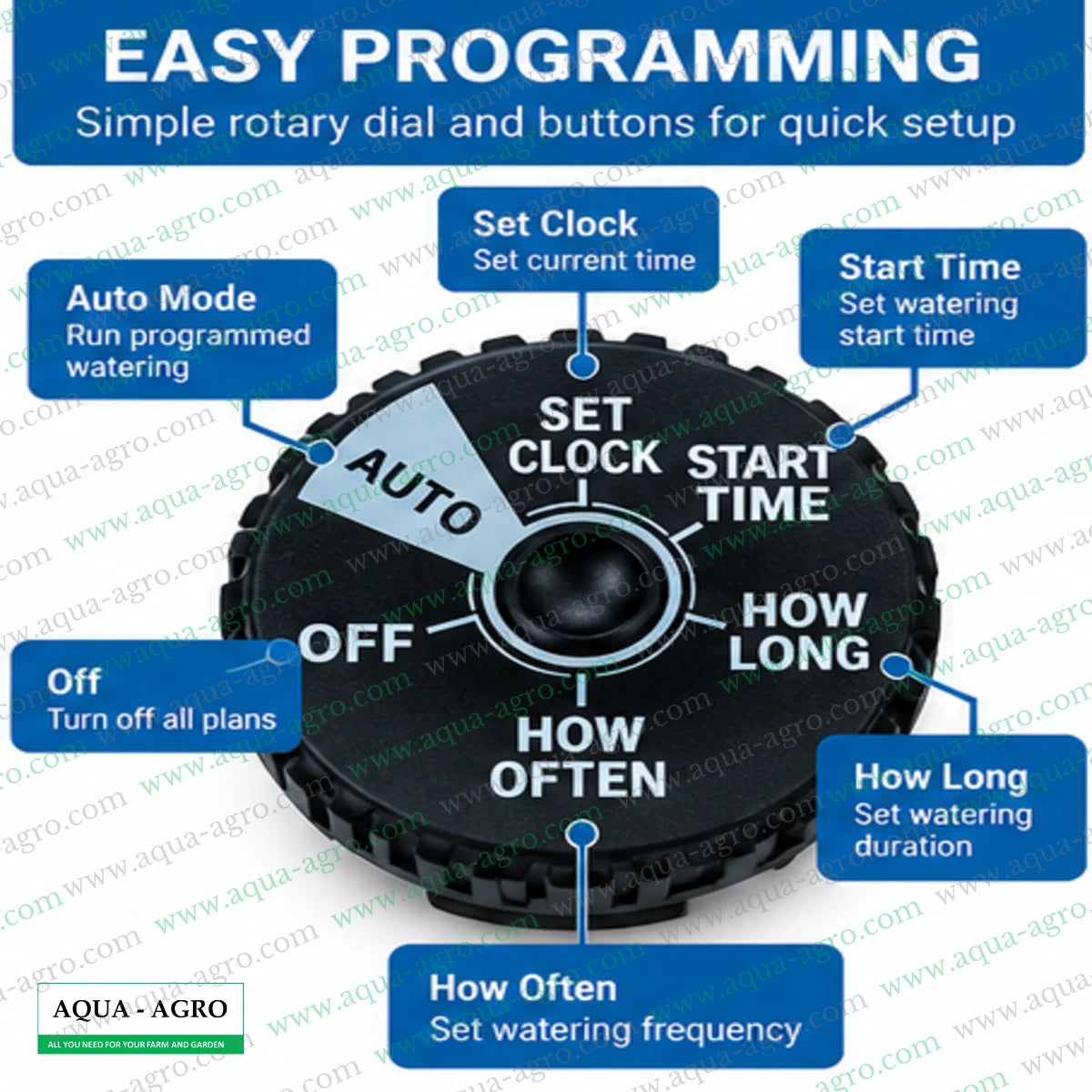

Operating Functions

• SET CLOCK: Set the current time.
• START TIME: Configure when automatic watering begins.
• HOW LONG: Set watering duration.
• HOW OFTEN: Select the watering frequency.
• AUTO: Run the saved automatic irrigation program.
• OFF: Disable scheduled watering.
• + Delay: Access the rain delay adjustment function.
• Manual: Start manual watering.
• OK: Confirm settings.

Installation & Usage Instructions

1. Install two AA 1.5V alkaline batteries in the timer's battery compartment.
2. Connect the 3/4 inch threaded water inlet to a compatible tap or water supply connection.
3. Connect the outlet to a suitable garden hose or irrigation pipe using the appropriate fitting.
4. Set the current clock time using the rotary dial and programming buttons.
5. Configure the watering start time, duration and frequency.
6. Select AUTO mode to activate the programmed watering schedule.
7. Use Manual mode whenever additional watering is required.
8. Use the rain delay function when scheduled irrigation needs to be postponed.

Important: Protect the timer from freezing conditions. Remove and store the timer appropriately when freezing temperatures are expected.

Why Choose IRRIWORLD MI-106T?

The IRRIWORLD MI-106T Digital Irrigation Timer combines automatic watering schedules, convenient manual operation, rain delay programming and battery-powered operation in one compact controller.

It is a practical solution for homeowners, gardeners, nursery operators and irrigation users who want to automate compatible garden watering systems without installing an electrical irrigation controller.
